Honda 68S Pilot and B53E Needle Info

Post  MA$TER_E on Tue Dec 04, 2012 3:07 am

The Internet needs another 68S pilot thread like I need another hole in my head. But this time its different. I've looked and looked and called and called. Finally I figured this out and think its best to share the information I've obtained and spare the world from more 68S threads. It wasn't easy and it took forever. I hope this helps someone else some day, I tried to get really good pictures so its very clear what is what.

Call your local Honda shop or go online and order these part numbers.
68S Pilot Jet Part Number: 99105-MBN0680
B53E Needle Part Number: 16012-MBN-641

Below are the sessy pictures for each as well as a pilot jet comparison.

Un-Opened OEM Packaging

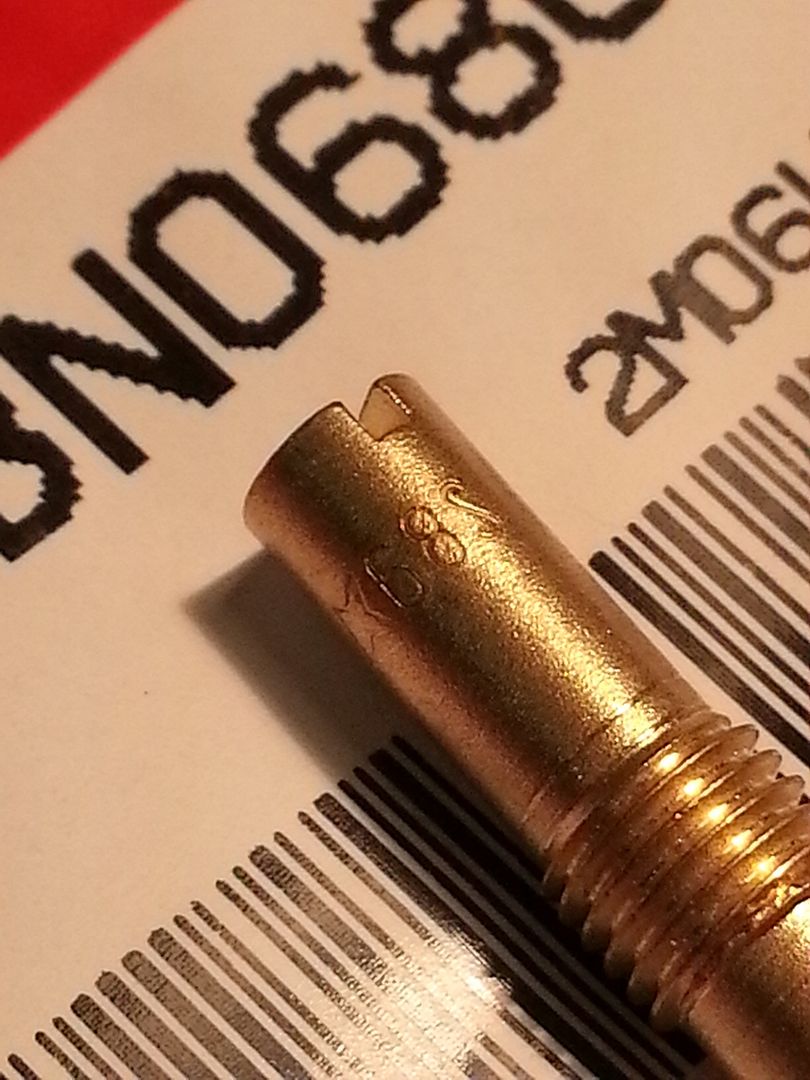

68S Pilot Jet

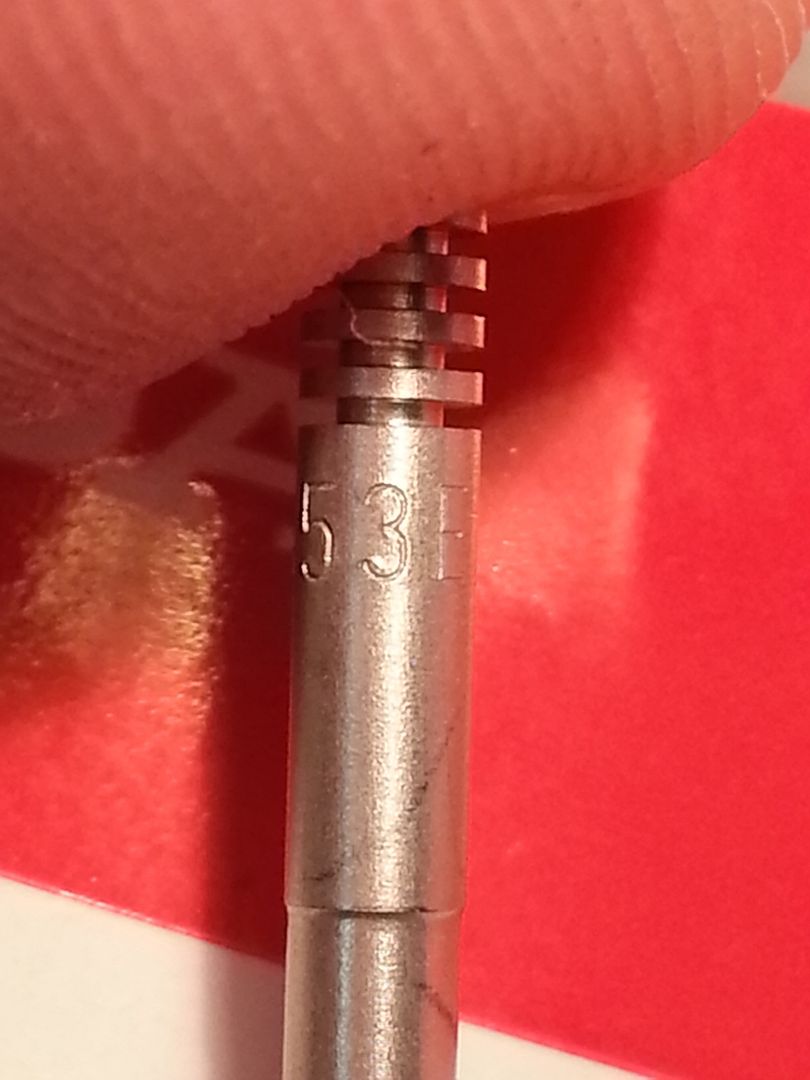

B53E Needle

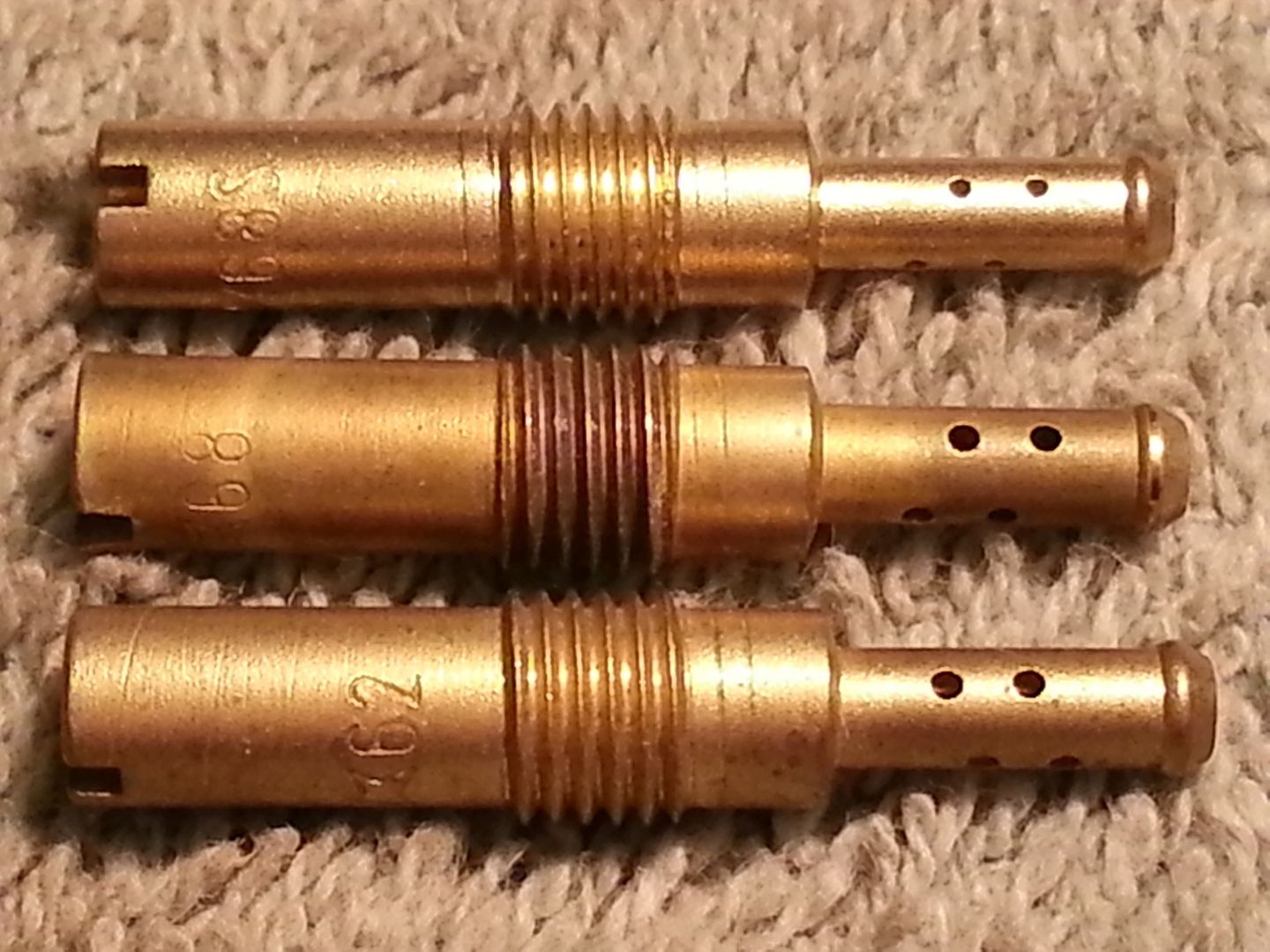

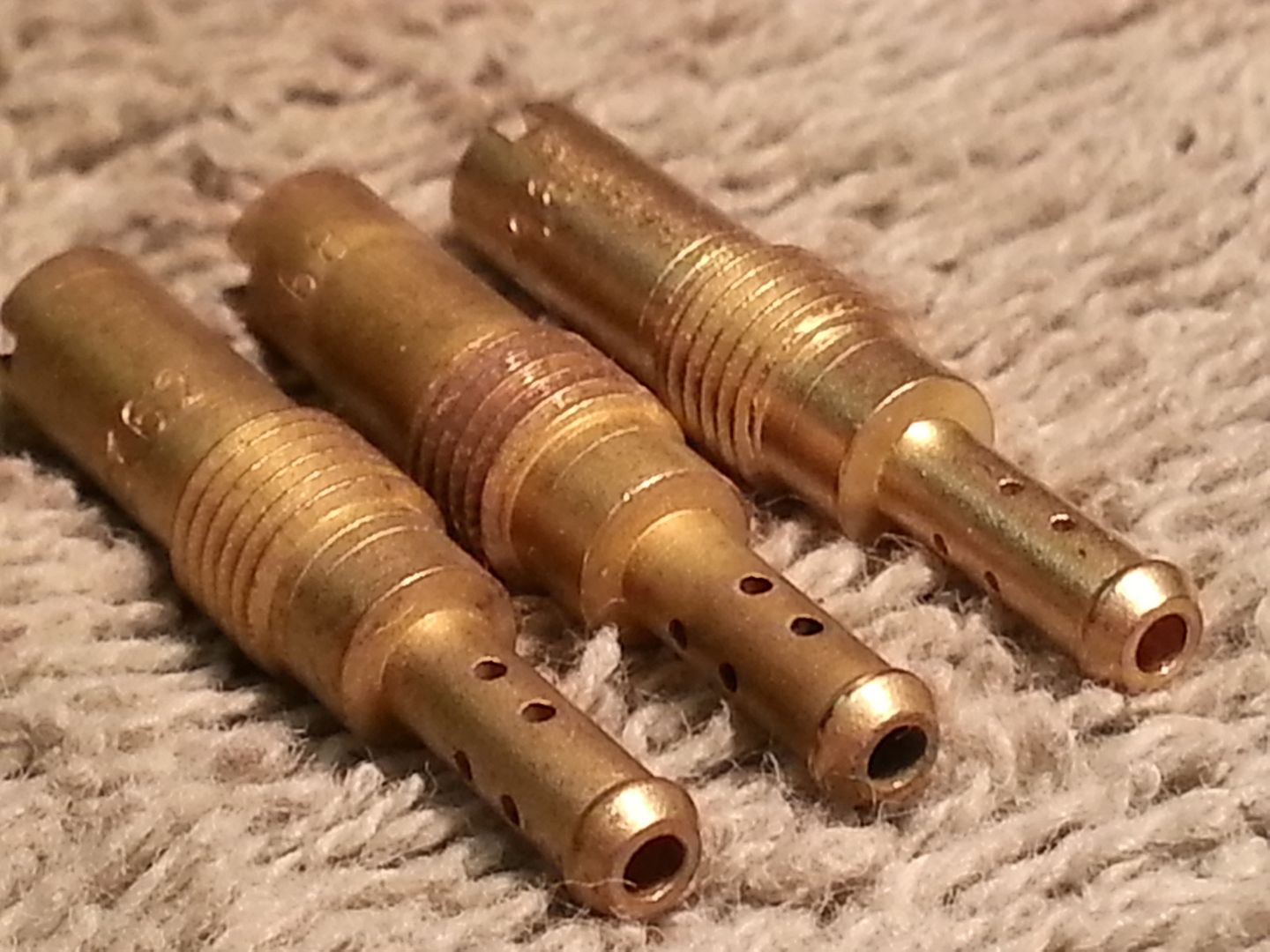

68S Pilot Jet Comparison (Top Down: 68S, 68, 62)



Happy jetting! Now go ride!

Edit: I forgot. Also here is the link to the XR650R Jetting Guide
http://www.xr650r.us/jetting/

cheers

MA$TER_E
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mauser on Tue Dec 04, 2012 8:21 am

Now your so good with the camera, do a complete re-jet procedure...with loads of pictures showing the full mod....I have not actually found a complete thread with pictures for this....only 650L or half the 650R.

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1821
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  MA$TER_E on Tue Dec 04, 2012 6:23 pm

Mod as in how to install the jets? I could do that! listen up

rider
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mauser on Tue Dec 04, 2012 9:30 pm

MA$TER_E wrote:Mod as in how to install the jets? I could do that! listen up

rider

Yes if you have time, right from taking carb off if possible ?, unless someone else has seen a full re-jet with pictures somewhere else ?.


_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1821
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Wed Dec 05, 2012 12:24 am

My needle looks little bit scratchet and slightly bent , i need a new one , but on the oficial UK honda parts site they only offer the stock needle and the part numbers differ for the same part compared to US part numbers beat head
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  MA$TER_E on Wed Dec 05, 2012 12:31 am

Oh yeah... Forgot about the whole being a pond away thing. There should be OEM part numbers, they're just hard to get a hold of.
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Wed Dec 05, 2012 12:37 am

I hope this info will help someone in the future ;
if you insert the US part number in the UK part number search it will come up with the correct part under the CORRECT UK P.N. even if they dont show this part in the exploded diagram parts list . Bananatool
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  MA$TER_E on Wed Dec 05, 2012 12:51 am

Mad Frosty wrote:I hope this info will help someone in the future ;
if you insert the US part number in the UK part number search it will come up with the correct part under the CORRECT UK P.N. even if they dont show this part in the exploded diagram parts list . Bananatool

BAM! Oh yeah Cool
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mauser on Wed Dec 05, 2012 8:09 am

Mad Frosty wrote:I hope this info will help someone in the future ;
if you insert the US part number in the UK part number search it will come up with the correct part under the CORRECT UK P.N. even if they dont show this part in the exploded diagram parts list . Bananatool
I went to my local Honda dealer and just brought the parts....£50 in total ?

16211-MBN-640 CARB ISOLATOR £14.50

99101-357-1750 #175 MAIN JET £10

16012-MBN-641 MAIN NEEDLE £26.50

99105-MBN-0680 SLOW JET £11

Took a couple of days to arrive....by the way she did me a deal that's why it was £50 not more lol.

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1821
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  MA$TER_E on Wed Dec 05, 2012 3:11 pm

Mauser wrote:
16211-MBN-640 CARB ISOLATOR £14.50
Elaborate on this item a little bit. What is it? What's it do?

I can make an assumption but we all know what ASSuming makes you BRP smile
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mauser on Wed Dec 05, 2012 4:43 pm

The restricted US piggies have the smaller rubber fitted between the carb and the head.....

You can alter the restricted version and cut out the middle but not worth if for a few quid listen up

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1821
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  MA$TER_E on Wed Dec 05, 2012 5:34 pm

Mauser wrote:
You can alter the restricted version and cut out the middle but not worth if for a few quid listen up

Thats great thanks! It is what I thought it was. Mine was cut out by the original owner. Kind of did a shabby job at it too.
16211-MBN-640 CARB ISOLATOR
I'll take note of that part number and order one of those from my Honda shop next pay check nice

rant I know XR's Only sells one but A) Its $35 bucks and B) I wasn't very impressed ordering from them. Got the impression over the phone that online sales are an inconvenience and my order will ship when they get to it. Could have ordered my parts from my Honda shop and paid the same price and had the parts a week sooner...

EDIT: ORDERED! And only $14 bucks! Bananatool
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Wed Dec 05, 2012 6:06 pm

Mauser wrote:
Mad Frosty wrote:I hope this info will help someone in the future ;
if you insert the US part number in the UK part number search it will come up with the correct part under the CORRECT UK P.N. even if they dont show this part in the exploded diagram parts list . Bananatool
I went to my local Honda dealer and just brought the parts....£50 in total ?

16211-MBN-640 CARB ISOLATOR £14.50

99101-357-1750 #175 MAIN JET £10

16012-MBN-641 MAIN NEEDLE £26.50

99105-MBN-0680 SLOW JET £11

Took a couple of days to arrive....by the way she did me a deal that's why it was £50 not more lol.

That is little bit cheaper than i can get them for , for example the needle cost

£31.48 from these http://www.lingshondaparts.com/honda_motorcycle_parts_selection_pfk.php?block_01=13MBNY41&block_02=E__1700&block_03=7715
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  MA$TER_E on Mon Dec 24, 2012 6:52 am

Mauser wrote:
MA$TER_E wrote:Mod as in how to install the jets? I could do that! listen up

rider

Yes if you have time, right from taking carb off if possible ?, unless someone else has seen a full re-jet with pictures somewhere else ?.

Just for you Mauser nice Merry Christmas Santa

http://www.xr650rforum.com/t1654-complete-xrr-re-jetting-procedure#9843
avatar
MA$TER_E
XRR Jockey

Joined : 2012-09-04

Posts : 178
Location : Gladstone, OR
XR650R Year : 2005

http://www.xr650rforum.com/t1576-mater_e-s-project-beasty

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Sun Jan 20, 2013 12:46 am

Mauser just to show you how good deal did they give you , this is what i have paid

INSULATOR,CARB - 16211MBN640
£11.21
JET,MAIN,#175 - 991013571750
£8.80
JET,SLOW #68 - 99105MBN0680
£11.21
NEEDLE SET,JET - 16012MBN641
£26.23
GASKET SET - 16010MBN671
17,40
and few screws
+ VAT
102 pounds in total poor baby
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mauser on Sun Jan 20, 2013 9:03 am

Should have said Frosty would have rung my dealer for you and got them to order at same prices....Sad....sorry if I have asked this question before but is your bike a US import ?, shouldn't need these parts unless it is ?....mine is and needed uncorking to use the correct name lol.

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1821
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Sun Jan 20, 2013 4:50 pm

Mauser wrote:Should have said Frosty would have rung my dealer for you and got them to order at same prices....Sad....sorry if I have asked this question before but is your bike a US import ?, shouldn't need these parts unless it is ?....mine is and needed uncorking to use the correct name lol.

Dont worry about it man , i just wanted to tell you how nice your dealer is . when i start buying the more expensive stuff i might ask you to help me to get better deal Wink I have purchased the bitts weeks ago .

As for the bike , i think its european version ( but i am not 100% sure ) it came uncorked , i have only bought the parts to refresh the carbie ( identical parts already installed ) just heard that the jets , needle and the seals need replacing now and again ( the bike its over 10 eyears old after all ) and as my iddle is all over the place the intake insulator might be leaking , got new one just in case . This is just temporary solution , the original carburettor will go to bin soon , and the TM 40 get the chance to show how its done Bananatool
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  R056rx on Thu Feb 20, 2014 10:14 am

Can anyone from the UK confirm that if you order part number 99105-MBN0680 you get the 68s jet and not the 68?
I've been to my local dealer and he's plugged the number in. According to him it's a 68. He showed me and there is no reference to it being a 68s.
Is there anyone from the UK who has actually ordered one and received a 68s?
avatar
R056rx
XRR Jockey

Joined : 2013-11-16

Posts : 89
Location : Winchester
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  BuRP on Thu Feb 20, 2014 11:01 am

No dealer will be able to tell you, but you will get the 68s! I did too...

Masterblaster, you're good with the camera me man..... so now off you go to the local stripclub, and make some pics for Mauser about rejetting etc  BRP smile BRP smile BRP smile
avatar
BuRP
XRR Monger

Joined : 2010-10-18

Posts : 1575
Location : Pretoria Souf Efrika
XR650R Year : 2007

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Thu Feb 20, 2014 7:04 pm

R056rx wrote:Can anyone from the UK confirm that if you order part number 99105-MBN0680 you get the 68s jet and not the 68?
I've been to my local dealer and he's plugged the number in. According to him it's a 68. He showed me and there is no reference to it being a 68s.
Is there anyone from the UK who has actually ordered one and received a 68s?

That is the 68S mate , dont listen to the numpties working for honda , they have no clue .
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mauser on Thu Feb 20, 2014 9:02 pm

Listen to Fruity....on occasions he speaks the truth  asking for it

_________________
Current ~  XR650R ~ XJR1300SP ~ ZX12-R ~ DT175MX
Previous Bikes XR250R ~ DT125R ~ GPZ1100 ~ RD350LC ~ XL125R ~ MT5
avatar
Mauser
Administrator

Joined : 2010-09-13

Posts : 1821
Location : UK
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Mon Feb 24, 2014 8:43 pm


Mauser wrote:Listen to Fruity....on occasions he speaks the truth  asking for it

 Shocked shrug
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  R056rx on Wed Apr 23, 2014 2:22 pm

Just reporting back that you do get a 68s with that part number. Mine has just arrived.  Bananatool

Also I can recommend this outfit... http://www.johnoldfield.co.uk

Good old fashioned, knowledgable service. They're local to me but they do post out. Their prices were also very good. Much cheaper than my local dealer and cheaper than what I've found on the net.
avatar
R056rx
XRR Jockey

Joined : 2013-11-16

Posts : 89
Location : Winchester
XR650R Year : 2002

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Mad Frosty on Wed Apr 23, 2014 11:41 pm

Told ya  BRP smile
avatar
Mad Frosty
XRR Monger

Joined : 2012-11-26

Posts : 1179
Location : UK
XR650R Year : 2000

Back to top Go down

Re: Honda 68S Pilot and B53E Needle Info

Post  Sponsored content


Sponsored content


Back to top Go down

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
