XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Fri May 25, 2012 8:25 am

What Jet fuel to install?


Engine configuration:

680cc cylinder: nicasil plated
Falicon rod Xr's only
102.4mm Wiseco piston - 11.5/1 copression
Hotcams stage 1
K&N air filter
Full Exhaust FMF: Power Bomb, Power core 4
STANDART Keihin 78aBofV

temperature 85`F (30`C)
ALT 656ft (200m) (218yd)

Main fuel Jet 185-190 ?
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  Hillbill on Wed Jun 27, 2012 10:05 pm

I DONT KNOW ........... yet BRP smile
avatar
Hillbill
L Rider

Joined : 2012-06-23

Posts : 10
Location : Montana
XR650R Year : 2002

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Tue Jul 10, 2012 9:48 am

BRP smile
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  BuRP on Mon Jul 16, 2012 8:16 pm

Здравствуйте Lawyer,

Got your bike doctored? Last I heard it was in intensive case, and was wondering if you found it a good nurse clown


Edit: OK, I only now see it's you who's asking - post a picture of that nurse please LOL.
Your best bet is "too large" and work down from that. I've read about someone having a 200 mounted, and this sounds awfully big - but he said he's happy. Best is to dyno the bike (with very good cooling hmm?), otherwise do some plugchops when WO.
Mind though, with htat big kit I'd rather have 'too big' than too small, but I hunch you alread know that Cool
avatar
BuRP
XRR Monger

Joined : 2010-10-18

Posts : 1575
Location : Pretoria Souf Efrika
XR650R Year : 2007

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Sun Aug 26, 2012 12:09 pm

I installed 200 Jet fuel, 4 needle position. Super acceleration, fuel consumption is very large.Clutch slips: ( Highway consumption 8 liters per 100 km. At a speed of 130 km/h. Star 15/48


Last edited by lawyer999RUSSIAN on Sun Aug 26, 2012 12:16 pm; edited 1 time in total
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Sun Aug 26, 2012 12:14 pm

BuRP wrote:Здравствуйте Lawyer,

Got your bike doctored? Last I heard it was in intensive case, and was wondering if you found it a good nurse clown


Edit: OK, I only now see it's you who's asking - post a picture of that nurse please LOL.
Your best bet is "too large" and work down from that. I've read about someone having a 200 mounted, and this sounds awfully big - but he said he's happy. Best is to dyno the bike (with very good cooling hmm?), otherwise do some plugchops when WO.
Mind though, with htat big kit I'd rather have 'too big' than too small, but I hunch you alread know that Cool

I assembled the motor, everything works fine. Mileage currently 4000 km
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  BuRP on Sun Aug 26, 2012 8:35 pm

Good to hear! Mind to stay away from that extra 1000-rev ceiling you have due to that ignition module hmm, I'm sure you don't want a repeat. Best is to install a Trailtech Vapor and set the alarms (Led's) accordingly.
Post a piccie please?
avatar
BuRP
XRR Monger

Joined : 2010-10-18

Posts : 1575
Location : Pretoria Souf Efrika
XR650R Year : 2007

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Mon Aug 27, 2012 1:33 am


200 small spark plug white ...: (((205-210
will beI did not like Trailtech Vapor, I use Iphone 4 + Navi GPS softwareI have installed extra strong crank, I think it will not break.

I use Luxa2 Bike Mount LH0012


avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Mon Aug 27, 2012 1:36 am

avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Mon Aug 27, 2012 1:38 am

avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  BuRP on Mon Aug 27, 2012 12:42 pm

A 'jet' with a 2mm hole is hardly a measuring device anymore - I wonder if you not should change to a Mikuni TM40? Plenty of needles & needle-jets available for it too, and the jet-size would be (my guesstimate) around 180.
avatar
BuRP
XRR Monger

Joined : 2010-10-18

Posts : 1575
Location : Pretoria Souf Efrika
XR650R Year : 2007

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  AURORA on Tue Aug 28, 2012 2:05 am

lawyer999RUSSIAN wrote:What Jet fuel to install?


Engine configuration:

680cc cylinder: nicasil plated
Falicon rod Xr's only
102.4mm Wiseco piston - 11.5/1 copression
Hotcams stage 1
K&N air filter
Full Exhaust FMF: Power Bomb, Power core 4
STANDART Keihin 78aBofV

temperature 85`F (30`C)
ALT 656ft (200m) (218yd)

Main fuel Jet 185-190 ?

Did you have the crankshaft balanced?
Do you have the HRC cam timing chain and tensioner?
1 to 3mm over sized valves?
I am surprised that your not running a stage 2 cam with proper valve reliefs to take advantage of the compression.

You will probably have to switch to a larger bore carburetor TM40, FCR41(a pain to install...must grind on engine and reshape fuel tank to fit) or a bored out to 40mm X 42mm venturiEledlbrock quicksilver pumper carb

You need a pumper carb for a street bike!

Stock carb, the 185 or 190 is what I would recommend.

You need to install the 190 or larger (better to be rich than lean). Install a new sparkplug. Start bike (avoid idling) complete a full throttle high speed run in the last gear. With engine at high speed, engage the kill switch while pulling in the clutch lever. Hold in both kill switch and clutch lever until you com to a stop. Remove the sparkplug. Inspect where the insulator touches the shell of the sparkplug. To perform the inspection you will need either a sparkplug inspection flashlight, this is a fancy flashlight with a magnifying lens, or carefully cut the threads and part of the metal base off of the sparkplug.

Review this post:

http://www.xr650rforum.com/t1359-reading-your-sparkplug?highlight=Sparkplug+reading

What you and all of us want to see (please post pictures) is the carbon ring around the ground/base of the sparkplug insulator.


Last edited by AURORA on Tue Aug 28, 2012 12:51 pm; edited 1 time in total (Reason for editing : Spelling)
avatar
AURORA
XRR Freak

Joined : 2008-12-09

Posts : 689
Location : PHOENIX
XR650R Year : 2003

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Tue Aug 28, 2012 2:30 pm

BuRP wrote:A 'jet' with a 2mm hole is hardly a measuring device anymore - I wonder if you not should change to a Mikuni TM40? Plenty of needles & needle-jets available for it too, and the jet-size would be (my guesstimate) around 180.

need to install keihin FCR41. I will be installing it in winter


Last edited by lawyer999RUSSIAN on Tue Aug 28, 2012 2:44 pm; edited 1 time in total
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Tue Aug 28, 2012 2:42 pm

AURORA wrote:
Did you have the crankshaft balanced? -Yes
Do you have the HRC cam timing chain and tensioner? It is installed but I do not understand why you need it?!
1 to 3mm over sized valves? -no
I am surprised that your not running a stage 2 cam with proper valve reliefs to take advantage of the compression. I do not understand you

You will probably have to switch to a larger bore carburetor TM40, FCR41(a pain to install...must grind on engine and reshape fuel tank to fit) or a bored out to 40mm X 42mm venturiEledlbrock quicksilver pumper carb -I know

You need a pumper carb for a street bike! -I know

Stock carb, the 185 or 190 is what I would recommend.

You need to install the 190 or larger (better to be rich than lean). Install a new sparkplug. Start bike (avoid idling) complete a full throttle high speed run in the last gear. With engine at high speed, engage the kill switch while pulling in the clutch lever. Hold in both kill switch and clutch lever until you com to a stop. Remove the sparkplug. Inspect where the insulator touches the shell of the sparkplug. To perform the inspection you will need either a sparkplug inspection flashlight, this is a fancy flashlight with a magnifying lens, or carefully cut the threads and part of the metal base off of the sparkplug. I know this technique, I set up on it. at 200 I have a white sparkplug.

Review this post:

http://www.xr650rforum.com/t1359-reading-your-sparkplug?highlight=Sparkplug+reading

What you and all of us want to see (please post pictures) is the carbon ring around the ground/base of the sparkplug insulator.
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Tue Aug 28, 2012 2:48 pm











170 fuel jet




Iphone 4 +Luxa2 + navitel (GPS Soft)










easy slider
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  BuRP on Tue Aug 28, 2012 6:40 pm

Great bike!
And ze kar iess alsso good!
Love your toys Wink
avatar
BuRP
XRR Monger

Joined : 2010-10-18

Posts : 1575
Location : Pretoria Souf Efrika
XR650R Year : 2007

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  AURORA on Tue Aug 28, 2012 10:42 pm

The stage 2 cam makes more efficient use of the higher compression ratio vs the Stage 1 cam.

Piston valve relief cut. Cuts is the piston dome which ensure the valves do not strike the piston...I assume you know this and was asking about the cam.

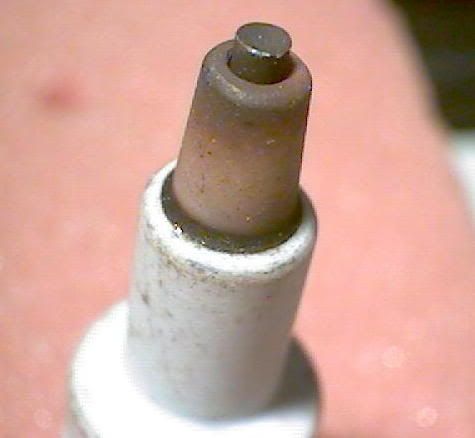

Does your sparkplug have a carbon ring such as the one pictured below?
avatar
AURORA
XRR Freak

Joined : 2008-12-09

Posts : 689
Location : PHOENIX
XR650R Year : 2003

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Tue Aug 28, 2012 11:23 pm

No, I have a lighter sparkplug. will install more than 200
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  AURORA on Tue Aug 28, 2012 11:48 pm

Just to be sure, I am talking about the 1 mm carbon ring at the base of the insulator cone(pictured above). Not talking about the color of the insulator cone.
avatar
AURORA
XRR Freak

Joined : 2008-12-09

Posts : 689
Location : PHOENIX
XR650R Year : 2003

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  xrmanu on Sat Mar 09, 2013 2:38 pm

you need a fcr41 @ to take full advance of the 680 kit,even better let it keyhole bore to 42 a 43mm.Add a XR400 CDI and a stage 2. And then ... I liked the engine with the stock bore and the HRC piston better than the 102.4mm.
avatar
xrmanu
L Rider

Joined : 2009-06-02

Posts : 35
Location : Aalst - Belgium
XR650R Year : '00

Back to top Go down

carbie update

Post  temporary kiwi on Mon Aug 12, 2013 12:30 am

so which carb did you fit, the std carb can flow more air by removing its choke, might make for hard starting in the cold though, ive used a couple of flat slides, a rs38mm mikuni[no advantage over stock] a fcr40mx, substantial gain over stock, which i had to mod fuel tank to fit[ ended up replacing due to leaks]now have modded fcr43.5mm to l/hand cable op, + a clarke 16l tank, still awaitng trials with this due to injury rcovery, i had just installed a 102mm piston + a motard grind cam with the xr400 ign, it does vibe more than the previous 100mm 12.5:1 ross piston, but should work my ov/size valves better on the 43mm carb

temporary kiwi
XRR Jockey

Joined : 2013-04-10

Posts : 211
Location : waikato, new zealand
XR650R Year : 02

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Mon Aug 12, 2013 1:15 am

My engine died (bearing GEARBOX, broke the CASING
avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

Re: XR680R What Jet fuel to install?

Post  lawyer999RUSSIAN on Mon Aug 12, 2013 1:27 am

avatar
lawyer999RUSSIAN
L Rider

Joined : 2011-03-05

Posts : 36
Location : Russia
XR650R Year : 2001

Back to top Go down

gearbag

Post  temporary kiwi on Mon Aug 12, 2013 1:52 am

looks like a cog has side loaded the bearing

temporary kiwi
XRR Jockey

Joined : 2013-04-10

Posts : 211
Location : waikato, new zealand
XR650R Year : 02

Back to top Go down
